Small Belt Conveyors

MTF Technik Fördertechnik - Intro

Limited space? Then the MTF Small Belt Conveyors of Type I-Tech are the ideal solution. Due to the low overall height of only 30 mm and the optimal ratio between outside width and usable width the conveyor can be integrated into the narrowest machine or tool shafts.

Straight Belt Conveyors
Belt Conveyors with Negative Angle
Belt Conveyors with Positive Angle
Z-Shaped Belt Conveyors

Small Belt Conveyors

Straight Small Belt Conveyors

The low construction height and the perfect proportions of outer width and effective width make these belt conveyors essential devices where only limited space is available..

That is why the "I" in the type description stands for "Integration" in machine shafts, production processes, automation equipment etc.

The large choice of belt materials, drive units and base frames make them universally deployable. Their scope of application stretches from discharging transport belts from punching machines to transport belts in pharmacy automation facilities or dust-free rooms.


MTF Technik Fördertechnik - Small Belt Conveyor Type IL

Small Belt Conveyor Type IL

Small Belt Conveyor Type IL

Especially straight small conveyors are often delivered without a base frame, if they are to be integrated in existing machines.

  • Lateral grooves for easy and flexible mounting
  • Variable drive units and belt designs for every application
  • Low construction height for places with limited space

MTF Technik Fördertechnik - Small Belt Conveyor Type IL-IP

Small Belt Conveyor Type IL-IP

Small Belt Conveyor Type IL-IP

The base frame type IP is thought to be the most economical and flexible solution for belt lengths of up to approx. 1,000mm and belt widths of up to 150mm.

  • Conveying angle adjustable between 0° and 60°
  • Large height adjustment range along the entire stand
  • One-sided fastening of the base frame to the belt frame, thus minimal lateral space requirements

MTF Technik Fördertechnik - Small Belt Conveyor Type IL-HE 010

Small Belt Conveyor Type IL-HE 010

Small Belt Conveyor Type IL-HE 010

Small conveyors with a width of up to approx. 500mm and a belt length of up to approx. 2,000mm are equipped with a base frame of type HE 010, if e.g. extreme belt slopes of up to 90° are necessary or if the stands must not overlap the running deck level to the sides.

  • Stable H-shaped base stand with screwed telescope aluminium supports
  • No base frame parts protrude upwards over the running deck level
  • Extreme angle adjustment range of +/- 90° is possible

MTF Technik Fördertechnik - Small Belt Conveyor Type IL-HE 030

Small Belt Conveyor Type IL-HE 030

Small Belt Conveyor Type IL-HE 030

The base frame type HE 030 consists of an H-shaped base with laterally mounted aluminium profiles. This base frame is used for conveyors with a length of up to approx. 2,000mm that e.g. need a large height adjustment range.

  • Step-less tilt adjustment of +/- 60°
  • Large height adjustment range
  • Stable and yet light frame

MTF Technik Fördertechnik - Small Belt Conveyor Type IL-HM 010

Small Belt Conveyor Type IL-HM 010

Small Belt Conveyor Type IL-HM 010

Belt conveyors with a length of more than approx. 2,000mm or higher belt loads are often equipped with base frames of type HM 010. It provides a safe stance and elegant adjustment of height and tilt with telescope supports made of anodised aluminium.

  • Base frame supports are moveable along the conveyor belt profile
  • No parts protrude upwards over the running deck level so that goods can be transported that overlap to the sides
  • Smooth surfaces, easy to clean

MTF Technik Fördertechnik - Small Belt Conveyor Type IL-IE 010

Small Belt Conveyor Type IL-IE 010

Small Belt Conveyor Type IL-IE 010

Small conveyors with a width of up to approx. 200mm and length up to max. 1.500mm are equipped with base frame IE 010, if height and angles need to be adjusted very often.

  • Only one-sided entry of conveyor belt so that one side is completely available for auxiliary parts to be mounted
  • Convenient height adjustment with ball guided gas pressure column
  • Step-less adjustment of tilt up to 60°
  • Tools are not necessary for adjustments

MTF Technik Fördertechnik - Small Belt Conveyor Type IL-ID 230

Small Belt Conveyor Type IL-ID 230

Small Belt Conveyor Type IL-ID 230

Small conveyors with a length of up to approx. 3,500mm as well as a belt width up to max. approx. 200mm are equipped with a base frame ID 230, if height and angles need to be changed very often.

  • Stable, closed base frame with two ball guided gas pressure columns for easy adjustment of height and angles without any tools
  • One-sided fastening of the base frame to the conveyor belt frame
  • No parts protrude the belt level upwards so that wider parts (e.g. metal sheets) can be transported

MTF Technik Fördertechnik - Small Conveyor Type IL-I2P

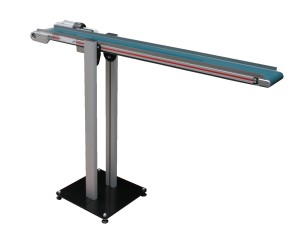

Small Conveyor Type IL-I2P

Small Conveyor Type IL-I2P

Small conveyors with a nominal width up to 350mm max. are often equipped with an underframe of type I2P in case of standard tasks. The underframe consists of a stable steel plate with screwed-on vertical profiles of anodised aluminium. With longer conveyors, several underframes can be mounted alongside the belt body.

  • Use as favorable solution for small conveyors
  • Stable basic plate of steel for a low gravity centre and therfore more stability for small conveyors
  • Available in moveable and fixed version
  • Large adjustment range alongside the vertical profiles of the underframe
  • Constant angle adjustment between -60° and +60°

MTF Technik Fördertechnik - Small Conveyor Type IL-LD 010

Small Conveyor Type IL-LD 010

Small Conveyor Type IL-LD 010

Three compact conveyors for integration to an assembly line for sensitive electronic components (ESD-compliant belt) are mounted together on a single underframe type LD 010, with height adjustment.

  • Height and inclination are adjustable
  • Underframe is mounted below the belt body, in order to avoid overlapping parts
  • Very stable and compact underframe

MTF Technik Fördertechnik - Small Conveyor Type IL-LD 230

Small Conveyor Type IL-LD 230

Small Conveyor Type IL-LD 230

For conveyors with a length up to 3,000mm and special applications, the underframe type LD 230 is a perfect solution. The closed base frame creates stability. An additional integration of special elements, like control cabinets, is also possible.

  • Conveying angle is continuously adjustable between 0° and 60°
  • Broad height adjustment range alongside the whole carriying profiles
  • The lateral mounting of the underframe struts enables to mount e.g. belt covers above the belt body

MTF Technik Fördertechnik - Small Conveyor Type IS

Small Conveyor Type IS

Small Conveyor Type IS

The straight steel mesh conveyors of type IS are often delivered without underframe, as they are integrated into automation machinery or stamping tools. If necessary, they can be equipped with all types of underframes for belt conveyors. Usually, these conveyors are not longer than 2,000mm and not wider than 300mm.

  • With lateral grooves for simple and flexible mounting or for fixation of tanks as support of the conveyor within the machine bed
  • Belts of steel and stainless steel in various versions and surfaces for the individual task
  • Compact drive units
  • Low building height for small available space
  • Available with our without lateral guidance

MTF Technik Fördertechnik - Small Belt Conveyor Type IL-AM 260

Small Belt Conveyor Type IL-AM 260

Small Belt Conveyor Type IL-AM 260

Especially stationary small conveyor belts with low conveying height are equipped with base frame AM 260. The base frame supports mounted to the lateral side of the body of the belt can be adjusted individually in height and tilt. Furthermore, the lateral grooves allow for mounting along the entire body of the belt. This way, projecting edges as may be found e.g. in machine beds, uneven floor surfaces or steps can be avoided. Conveyor belts with this arrangement are often used in angled machine shafts. Lateral mounting of the base frames also allows for arrangement as tiered conveyor belt. The low construction height of the conveyor belts allows for very compact buffer units that can partly be integrated in the ...

Small Belt Conveyors with Negative Angle

MTF Small Belt Conveyors are a perfect solution where transported goods must be discharged from very low machine shafts and then transported upwards.
They are often used for packaging machines or e.g. plastic injection moulding machines or blow forming machines where they serve as discharge conveyors.

The conveying angle is fixed (30°, 45° or 60°). The maximum belt width is 500mm.
Depending on the particular task, numerous different belts, drive units and base frame types are available.


MTF Technik Fördertechnik - Small Belt Conveyor Type INL-I2P

Small Belt Conveyor Type INL-I2P

Small Belt Conveyor Type INL-I2P

Stable against collapse and reasonably priced - these are the characteristics of base frame type I2P . A compact steel base plate is the foundation for stable aluminium profiles which are mounted to the lateral sides of the conveyor belt frame. The maximum frame width of the conveyor belt is 350mm.

  • Large height adjustment range
  • Step-less tilt adjustment between 0° and 60°
  • Base frame supports can be moved along the body of the belt
  • Several base frames are used for longer belts

MTF Technik Fördertechnik - Small Belt Conveyor Type INL-HE 030

Small Belt Conveyor Type INL-HE 030

Small Belt Conveyor Type INL-HE 030

Small belt conveyors with a width of up to 500mm are often equipped with base frame HE 030. The H-shaped base frame with vertical aluminium profiles is a stable foundation for many applications and is very low in weight.

  • Large height adjustment range
  • Tilt adjustment range of the base frame between 0° and 60°

MTF Technik Fördertechnik - Small Belt Conveyor Type INL-HE 010

Small Belt Conveyor Type INL-HE 010

Small Belt Conveyor Type INL-HE 010

Angled small conveyors with mostly short flat belt parts are often equipped with an underframe of type HE 010. This applies especially when laterally overlapping profiles are not allowed due to space limitations.

  • The underframe is moveable alongside the lateral grooves of the conveyor
  • Moveable and fixed versions available
  • Easy and continuous height adjustment by means of telescopic underframe profiles
  • Steep belt positions are possible

MTF Technik Fördertechnik - Small Belt Conveyor INL-ID 230

Small Belt Conveyor INL-ID 230

Small Belt Conveyor INL-ID 230

The solutions are just as various as the tasks in the different industries. The base frame type ID 230 with two ball guided gas pressure columns enables a convenient height adjustment with nearly no force and without any tools.

  • Lift height with gas pressure support up to 480mm
  • Step-less tilt adjustment between 0° and 60°
  • Various connection possibilities between base frame and conveyor belt frame depending on task

Small Belt Conveyors with Positive Angle

Positively angled small belt conveyors are e.g. used as feeder belt for assembly processes or are used where a horizontal delivery of the parts to a subsequent process is necessary.

Fixed conveying angles of 30°, 45° and 60° are available for various parts.


MTF Technik Fördertechnik - Small Belt Conveyor Type IPL-I2P

Small Belt Conveyor Type IPL-I2P

Small Belt Conveyor Type IPL-I2P

Small angled conveyors with a total length of up to approx. 1,500mm and a width up to max. 350mm can be made with base frame I2P. It creates stability against collapse due to the compact base frame plate.

  • Large height adjustment ranges
  • Stable against collapse
  • More supports are used for longer belts

Z-Shaped Small Belt Conveyors

Z-shaped small conveyors have fixed belt bends with 30 °, 45° or 60°. They can be equipped with numerous different belt qualities, drive units, base frame types and additional fittings.

They are used for transport of small parts where large differences in height must be overcome but feeding and discharging area must be horizontal.


MTF Technik Fördertechnik - Z-Shaped Small Belt Conveyor Type IZL-I2P

Z-Shaped Small Belt Conveyor Type IZL-I2P

Z-Shaped Small Belt Conveyor Type IZL-I2P

Base frame I2P is often used in combination with Z-shaped small conveyors that must not exceed a total length of approx. 2,000mm. The stand heights as well as the fixing of the base frame to the conveyor belt frame is done flexibly depending on the particular task.

  • Compact construction
  • Flexible adjustment possibilities regarding height and angle (+/- 60°)
  • Stable arrangement
