Small Conveyor Type IL-LD 230

Straight Conveyor

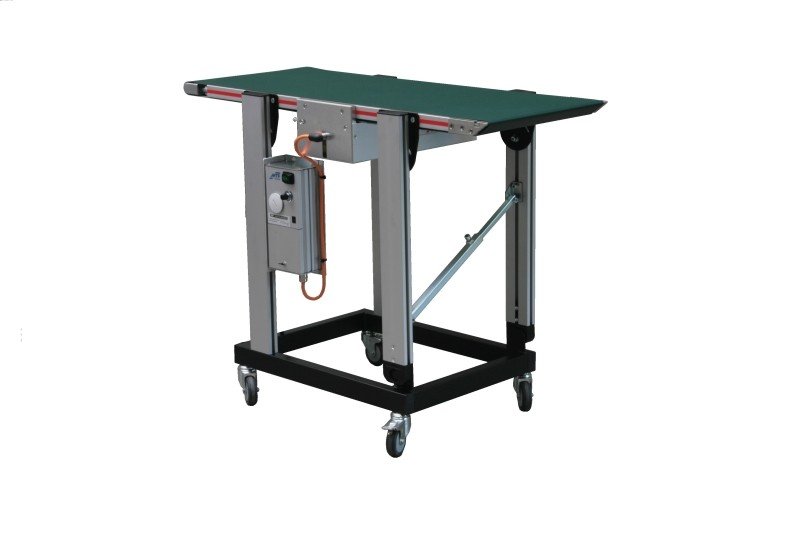

The pictured underframe consists of a closed base frame made of welded steel pipes with screwed-on profiles of anodised aluminium. Alongside the profile grooves, fixing modules can be flexibly adjusted in order to change the height of the conveyor. The grooves can be closed with corresponding joint profiles made of plastics, in order to allow a simple cleaning and to avoid gaps. As an option, the whole underframe can be made of stainless steel.

The pictured version shows an stainless steel housing with special rolls of Pevothan, in order to minimise abrasion when moving the underframe.

In addition, the base frame can be equipped with further elements - here with a big switch cabinet.

Product Information
Small Belt Conveyors

Highlights

For conveyors with a length up to 3,000mm and special applications, the underframe type LD 230 is a perfect solution. The closed base frame creates stability. An additional integration of special elements, like control cabinets, is also possible.

Conveying angle is continuously adjustable between 0° and 60°
Broad height adjustment range alongside the whole carriying profiles
The lateral mounting of the underframe struts enables to mount e.g. belt covers above the belt body

Belts

We have the right belt for your every conveyance need, guaranteed!
More information on belts for our conveyors

Drive Units

Power, performance and profitability - these criteria are met by the drives from MTF Technik. The right drive is designed for your conveyor and your conveyance requirements.
More information on the drives for our conveyors

Base Frames

The MTF Multi-Tech bases bring flexibility and stability "on wheels".
More information on the bases for our conveyors
