Z-conveyor belt for the gentle placement of parts

Task: Gentle transport of die-cast parts

Aluminum die-cast parts should be transported as gently as possible into different containers after passing through a cleaning system.

The drop height of the parts into the containers should be kept to a minimum.

The adjustment of the drop heights should be carried out with the least possible effort.

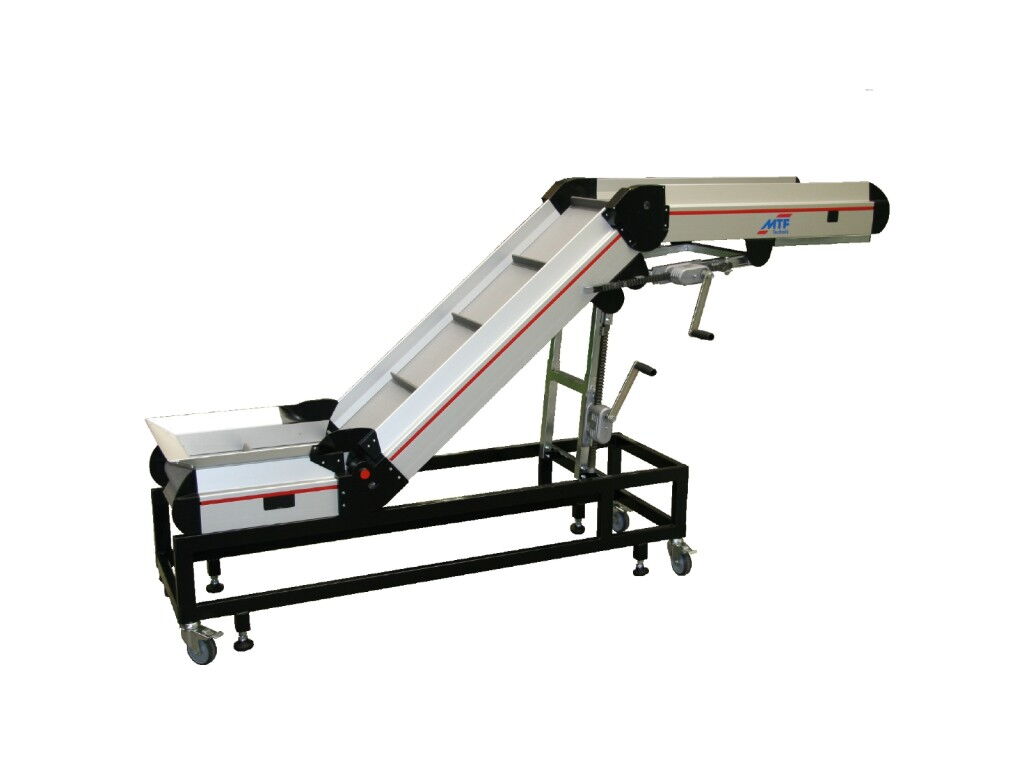

Solution: Spring-loaded flexible Z-conveyor belt

Z-conveyor belt type ZL-HF 310 with double rack and pinion adjustment

The adjustment mechanism is supported by gas springs.

Stable steel base frame to accommodate the conveyor belt and adjustment mechanisms

Durable polyester running mat MTF No. 12

Drive integrated into the belt body
