Rotary accumulation table with spiral

Task: Buffering of steel parts for cooling

Steel parts should be buffered after a grinding process to cool down before the next processing step.

When buffering, it is essential to maintain the order of the subtasks (FI-FO principle).

The goal is to buffer 180 parts in a minimal space.

Solution: Rotary storage table with special attachment with polyester coating

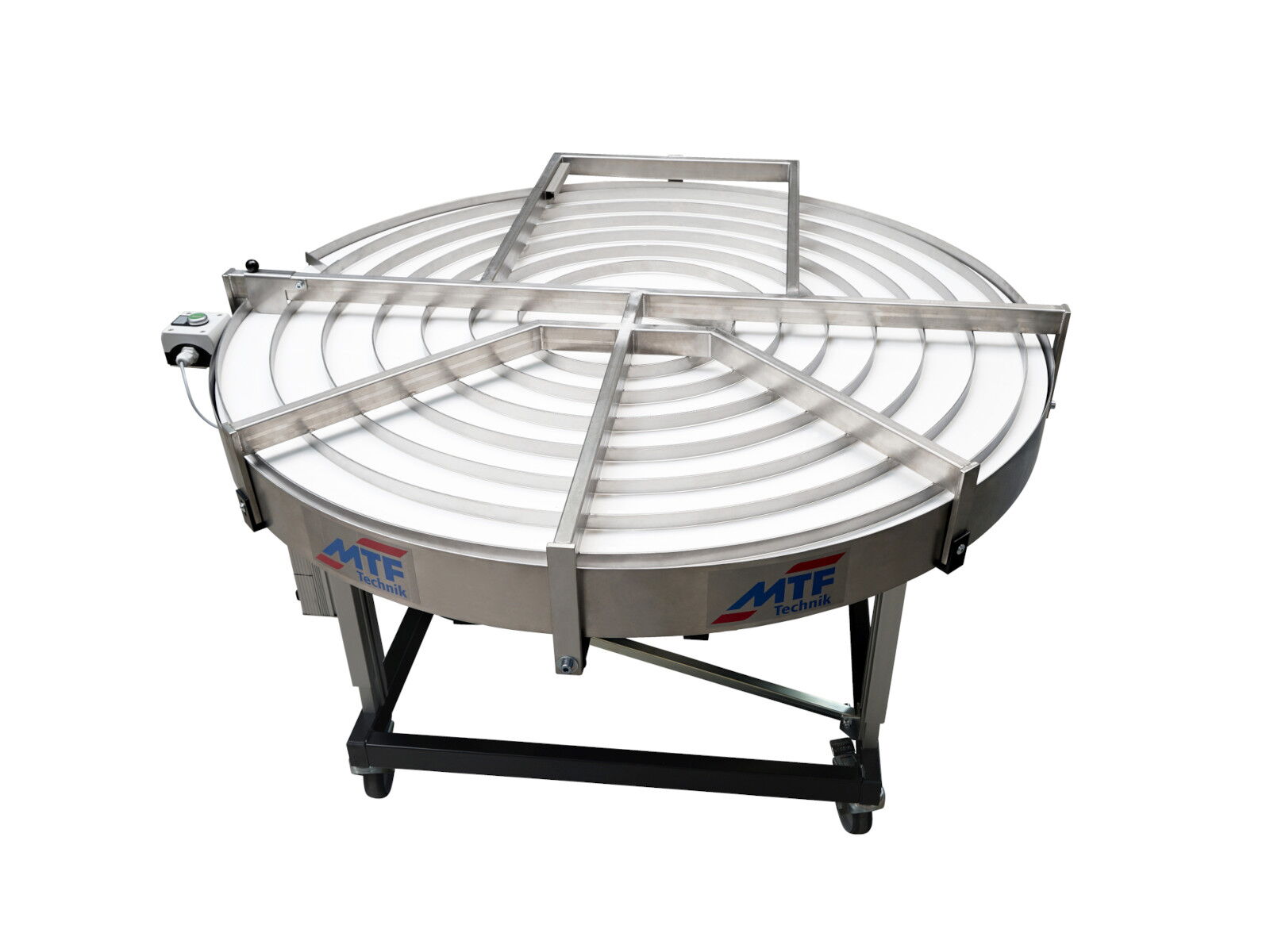

Rotating storage table with stainless steel spiral attachment

Multiplex turntable with attached polyester coating for friction reduction during storage operation

When parts are fed onto the rotary storage table from the center, they travel along the spiral to the outer edge and are accumulated there.

A stop is mounted at the end of the spiral, against which the parts can be accumulated. When the stop is opened, the parts can be removed manually.
