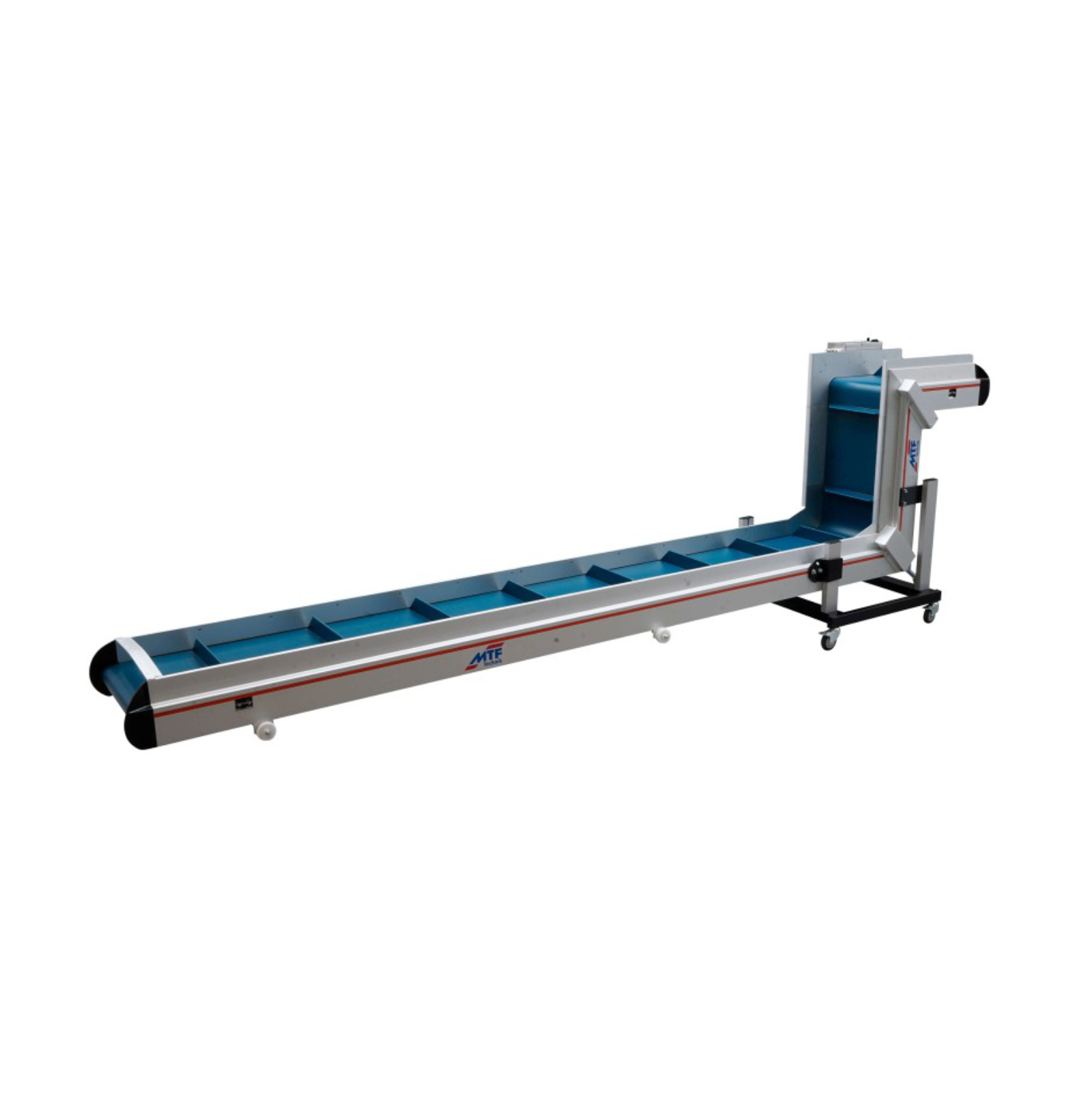

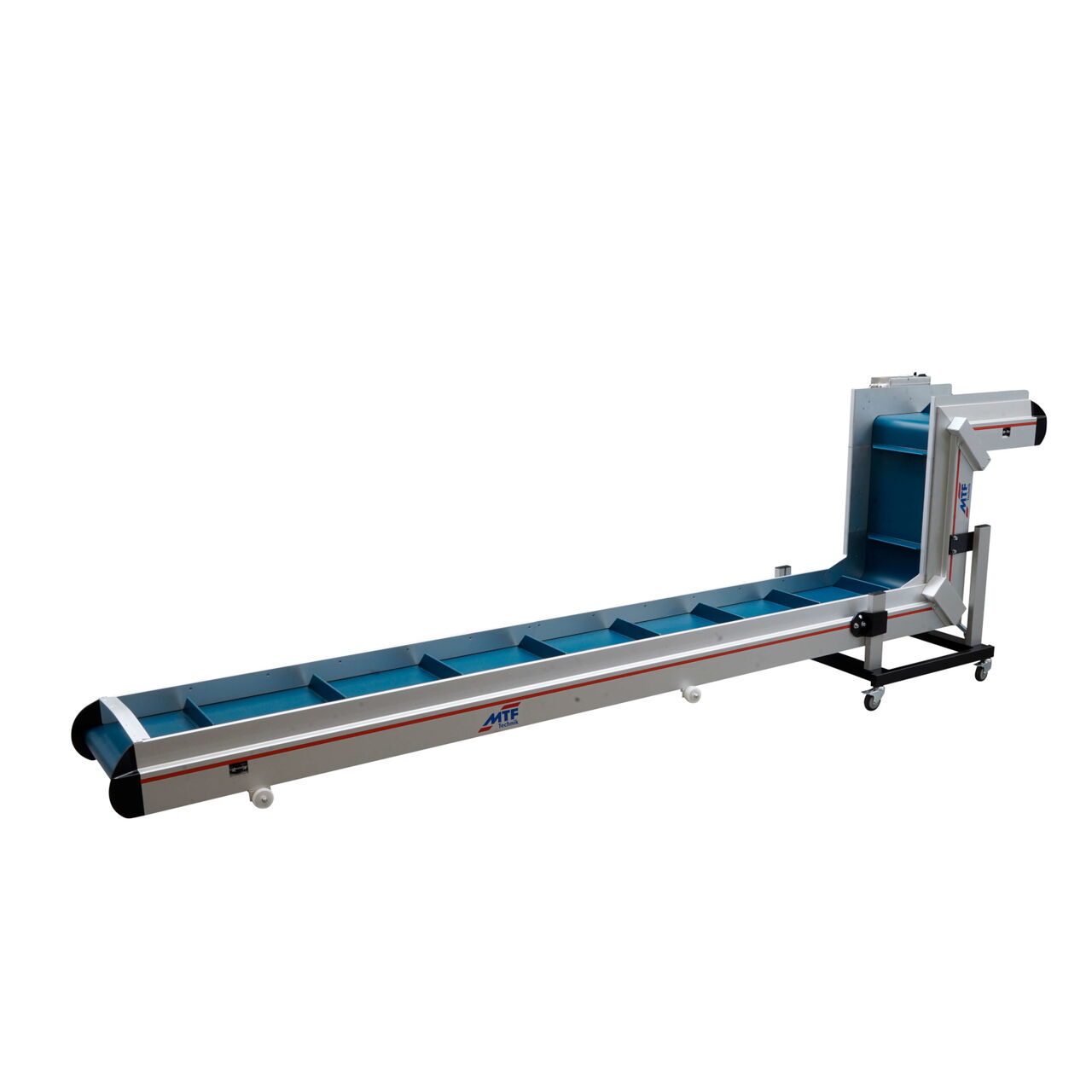

Z-conveyor belt in special design, serial no. 54673
Z-shaped belt conveyor in special design
Z-conveyor belt in special design, serial no. 54673
Z-shaped belt conveyor in special design
Base frame: Mobile, band support movable on both sides
Belt type: PU smooth, petrol-colored
Drive unit: Worm gear motor with continuously variable belt speed
- Description
- Advantages
- Technical data
This Z-shaped conveyor belt in a special design with a long flat belt section was built for testing purposes and is in absolutely mint condition.
Conveyor belts serviced by the manufacturer
Delivery from stock
Attractive prices for used conveyor belts
short delivery times
fast availability
Conveyor belts tested by the manufacturer
Feature
Value
Dimensions:
Lower flat strip length L1: 3,080 mmSteep strip length L2: 625 mmUpper flat strip length L3: 450 mmNominal strip width: 500 mmUsable strip width: 400 mmSide guide height: 80 mmHeight of guide plates L2, L3: 120 mmStrip angle: 90° fixed (both)Dimension; bottom/lower edge of strip exit: 950 mm
Belt type:
MTF No. 14Material: Smooth PU, petrol-coloredTemperature resistance: -15°C to +80°CAntistaticOil and grease resistantFDA approvedCarrier lugs: Type SG (closed loop)(Quantity: 23 pieces, height 60 mm)Length: 380 m
Drive unit:
External drive: Type ASWorm gear motor with continuously variable belt speedBelt speed: 3.1 - 15.7 m/minMotor power: 180WVoltage: 230VFrequency: 50Hz
Equipment:
Belt cover, steep belt section made of polycarbonateCatch plateGuide plates: anodized aluminum
Base frame:
Type: SpecialVersion: MobileBand support: Mobile on both sidesSerial No.: 54673Identification No.: 451425Year of manufacture: 2023
