Multi-Tech Profile Technology

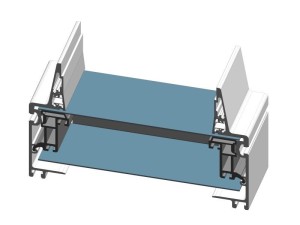

The MTF Multi-Tech Profile Technology, consisting of a self-supporting aluminium double crossbeam construction, is a "revolution" in conveyor belt engineering.

The multi-functional anodized aluminum profile with two T-grooves each provides an easy combination of the conveyor with all-purpose-underframes. In the same way, auxiliary facilities for various other uses can be mounted as easily.

Of course, our guiding profiles for Multi-Tech belt conveyors are available in different heights. As well, the user-friendly construction of the belt body is convincing: Changing the belt cover is a fast and easy process. And the extremely smooth surface of the profiles allows an easy cleaning of the belt conveyor.

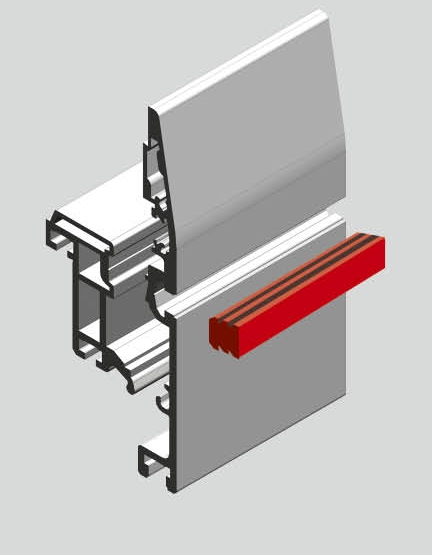

In order to transport even surface-sensitive goods as gently as possible, MTF engineers have developed a progressive belt cover sealing system (clip sealing strip) featuring a 10° inclination angle towards the belt cover. Within the flat part of the belt conveyor, an additional sealing strip is fitted reliently and thus adapts automatically to the belt angle and the belt cover strength of your MTF Multi-Tech conveyor.

Product Details

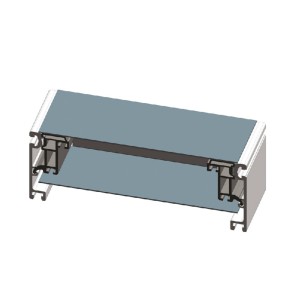

Profile GL 0

For use with straight robot conveyors or when the goods extend laterally beyond the conveyor body.

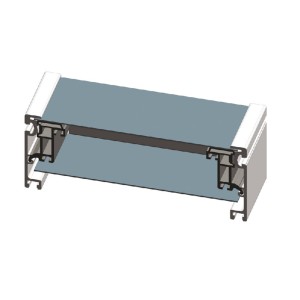

Profile GL 7

For use with conveyors at assembly points or when the edges of the belt cover need to be protected.

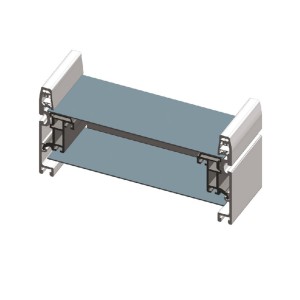

Profile GL 40

For straight conveyor belts in low machine shafts or on multi-level conveyors.

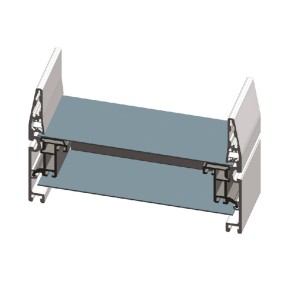

Profile GL 80

For use with straight conveyors where a lateral guiding heigth of 80mm is necessary, e.g. with inclining conveyor belts.

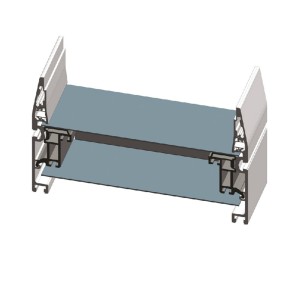

Profile GL 80 A

For use with straight conveyors with a lateral guiding height of more than 80mm.

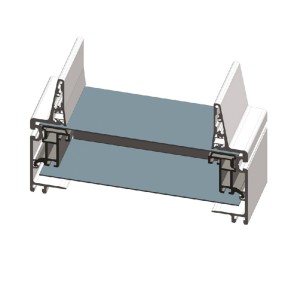

Profile KL 80

Standard profile for angled conveyors with a lateral guiding height of 80mm.

Profile KL 80 A

This profile is used for angled conveyors with a guiding profile height of more than 80mm.

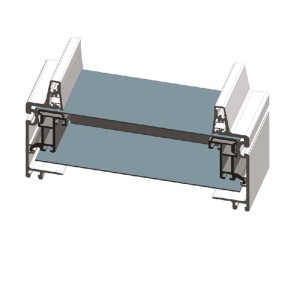

Profile KL 50

Special profile to allow the lowest possible feeding heights with angled conveyors.
