Stand-Alone Separating Devices

With the use of the screw separator "MSL / MSR," the larger parts of the items to be separated are moved to the side with the help of the screw. Smaller pieces slide out between the height-adjustable outlet slide and the screw roller.

• Separator lengths of 600 mm and 800 mm as standard
• Screws available in a variety of materials with different screw surfaces and heights
• Simple adjustment of the separation gap with knurled nuts
• Speed adjustable at 15 levels from 8 to 140 rpm
• Overload protection prevents piece jams and injuries to operating personnel
• Low energy use due to efficient planetary gear drive
• Polyester scraper above the screw prevents accidental skipping of pieces or sprues
• Adjustable spikes for easier separation of pieces
• Telescoping base, easily adjustable in height and angle
• Wheels with locks for stability

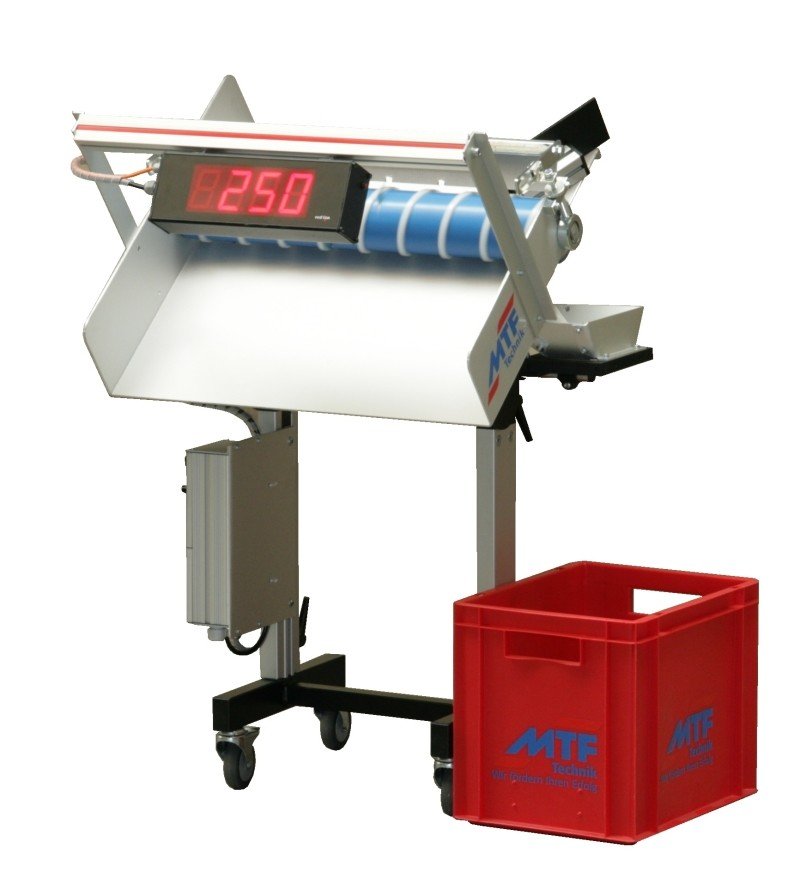

In addition to separation, the devices - depending on the task - are also suited to piece isolation and piece counting. The screw queues the pieces behind one another so that they fall individually through a special counting sensor. Depending on the piece geometry, as many as 90 pieces per minute can be safely counted in this way.

• Significantly more cost-effective than a scale for measuring quantity
• No weighing of differing pieces necessary, since pieces are counted regardless of form.
• Unlike a scale, not sensitive to environmental influences (vibrations, draughts, etc.)
• Separation and counting with one device
• Drive uses a drum motor with independent speed control - allows connection to a parent control for fine measurement

With the disk separator, the longer pieces are carried over the disk rollers to the separator outlet, while the smaller pieces fall through the many available separation gaps.

• Separator lengths of 600 mm and 800 mm standard
• Number and spacing of the disk segments adjustable depending on the spectrum of pieces to be separated
• Drum motor drive with 15 speed steps between 8 and 140 rpm and integrated overload protection
• Distance between the fully equipped disk rollers adjustable in seconds
• Moveable base with telescoping aluminium profiles for easy height and angle adjustment

For an easy and repeatable allocation of boxes, MTF offers a special underframe.

• Height-adjustable box pick-ups für good parts and runners
• Customer-specific layout of the device

Multi-Separators can be applied in the die casting industry, as well.

• All parts in contact with the product are made of stainless steel
• The drive unit is equipped with an intelligent overload protective device
