Belt Conveyor Type PLF-Special

Belt Conveyor with Positive Angle

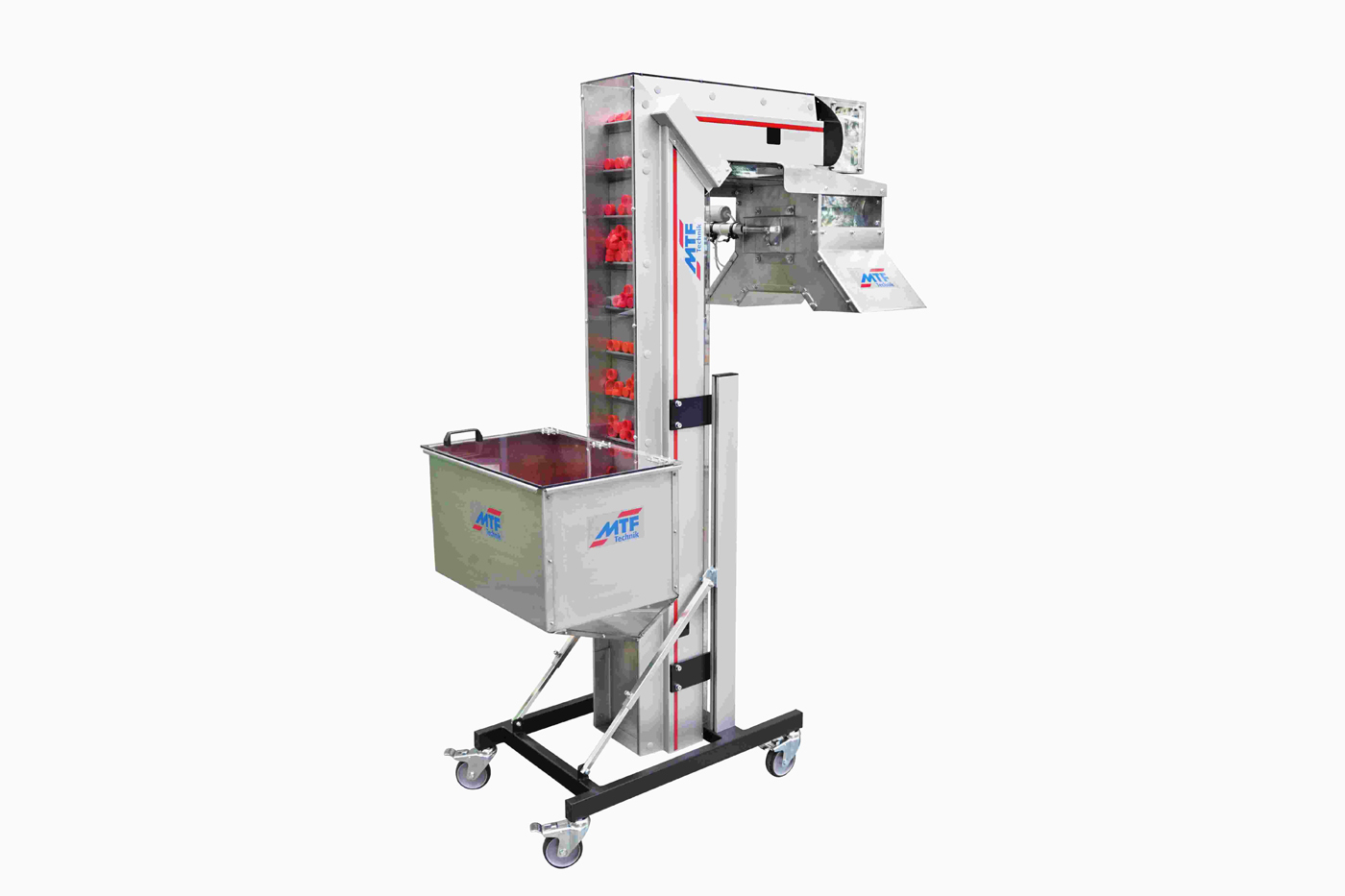

This vertical conveyor was custom made for a manufacturer of medical parts. The vertical construction was necessary for connecting two production machines and thereby creating a gangway for the workers.

All areas in contact with the product are lined with stainless steel, and all welding and connecting spots are completely blended and executed without any seams.

There is a special stainless steel hopper integrated in the feeding area. In addition, there is a transfer element mounted at the disposal area, in order to fill the next machine by means of a JACOB Pipe System.

The high transporting cleats are bended forwardly in order to create a shovel effect for a safe transport of the required amount of goods.

Additional Downloads

Calculator for the measures of angled conveyor belts

Highlights

Special requirements need special engineering: The underframe profiles by MTF Technik can be used for endless variations. In this case, the struts are mounted with angle flaps at a vertical conveyor.

Stable underframe with welded base frame
Height adjustment via the individual profile lenghts
Accessories (working lamps, fasteners, switches etc.) can easily be mounted at the grooves of the underframe profiles

Application Examples and Tutorials

Application video: Vertical conveyor PLF-Special together with 2-way reject chute for space-saving conveying

Belts

We have the right belt for your every conveyance need, guaranteed!
More information on belts for our conveyors

Drive Units

Power, performance and profitability - these criteria are met by the drives from MTF Technik. The right drive is designed for your conveyor and your conveyance requirements.
More information on the drives for our conveyors

Base Frames

The MTF Multi-Tech bases bring flexibility and stability "on wheels".
More information on the bases for our conveyors

MTF Specialist

Do you need a customized offer?

Please find below Inquiry Forms for standard devices of Conveyor Technique, Separation and Automation in PDF-format.
Go to Inquiry Forms
