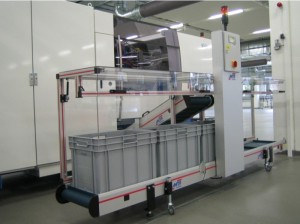

Linear Buffer Conveyor in Cleanroom (Pharma)

Task: Transport of plastic parts in containers in the clean room

Plastic parts shall be conveyed into containers after injection moulding process.
Electrostatic charging shall be deflected.
The quantity per container should be pre selected by means of a counter
Angles of repose shall be avoided.
Empty containers shall be provided at the filling station.
The complete unit shall work in a an area similar to a clean room (controlled area)

Solution: Buffer conveyor belt with FDA compliant infeed belt

A specially aligned feeding conveyor transports the parts our of the machine.
Integrated ionizing device with fan to deflect electrostatic charge of the parts.
Conveyor equipped with FDA-approved belt, additional longitudinal guides to avoid contact between conveyed parts and lateral guiding system.
As buffer for empty and filled containers a GL conveyor is aligned (Length, width, distance between cleats)
The length of this conveyor can be aligned to the available space.
Optical sensors detect the container positions and report if empty containers have to be led in and/or filled containers have to removed.
Adjustable cyclic operation of the buffer belt to avoid angles of repose.
Complete unit covered by polycarbonate.
